OUR
MODELS
MODEL
INTRODUCTION
Standard Model
- Long-Lasting 10 Ah Battery: A larger-capacity 12 V 10 Ah lead-acid battery provides extended use.
- Caregiver Remote Control：Designed for Caregivers When Seniors Cannot Operate the Stairlift Independently.
Showcase
Multi-Storey &
Heavy Duty Model
- High-Capacity Lithium Battery: A 25 V 17 Ah lithium battery with imported Japanese cells provides extended use.
- Floor-to-Floor Remote Control：Travel to the Desired Floor or Transport Items with a Single Touch.
- Multi-Floor Charging Design: Charging stations on every floor allow the stairlift to charge nearby, reducing waiting time.
Showcase
Narrow Stairway Model
- 65 cm Minimum Stairway Width: Can be installed on stairways with a width of 65 cm or more.
- Seat Travel After Rotation: The seat rotates before traveling along the rail, allowing users to move through narrow stairways in a more ergonomic position.
Showcase
Outdoor Model
- Splash-Resistant Main Unit: The control circuit board is designed to resist splashes and moisture.
- Rust-Resistant Electroplated Rail Brackets: The rail brackets are electroplated and powder-coated for enhanced rust resistance.
- Waterproof and Dustproof Protective Cover: The seat unit is equipped with a waterproof canvas cover for added protection.
Showcase
Customized Model
- Headrest and Head Support Strap: The seat is equipped with a headrest and head support strap for added stability and comfort.
- Chest Safety Belt: The seat is equipped with a chest safety belt for added upper-body support and security.
- Lower-Leg Support Strap: The seat is equipped with a lower-leg support strap for added stability and safety.
- Custom Enlarged Footrest: The seat is equipped with a customized enlarged footrest for improved support and comfort.
Showcase
Freight Models
- Custom Cargo Rack: The seat is modified with a custom cargo rack for transporting items between floors.
- Waterproof Stainless Steel Cargo Rack: A custom-made waterproof stainless steel cargo rack is provided for transporting items between floors.
Showcase
Multiple Color Option
PU Leather Seat for Easy Cleaning and Maintenance
InkWash Gray
Persian Green
Vermilion Red
Cerulean Blue
Burgundy Purple

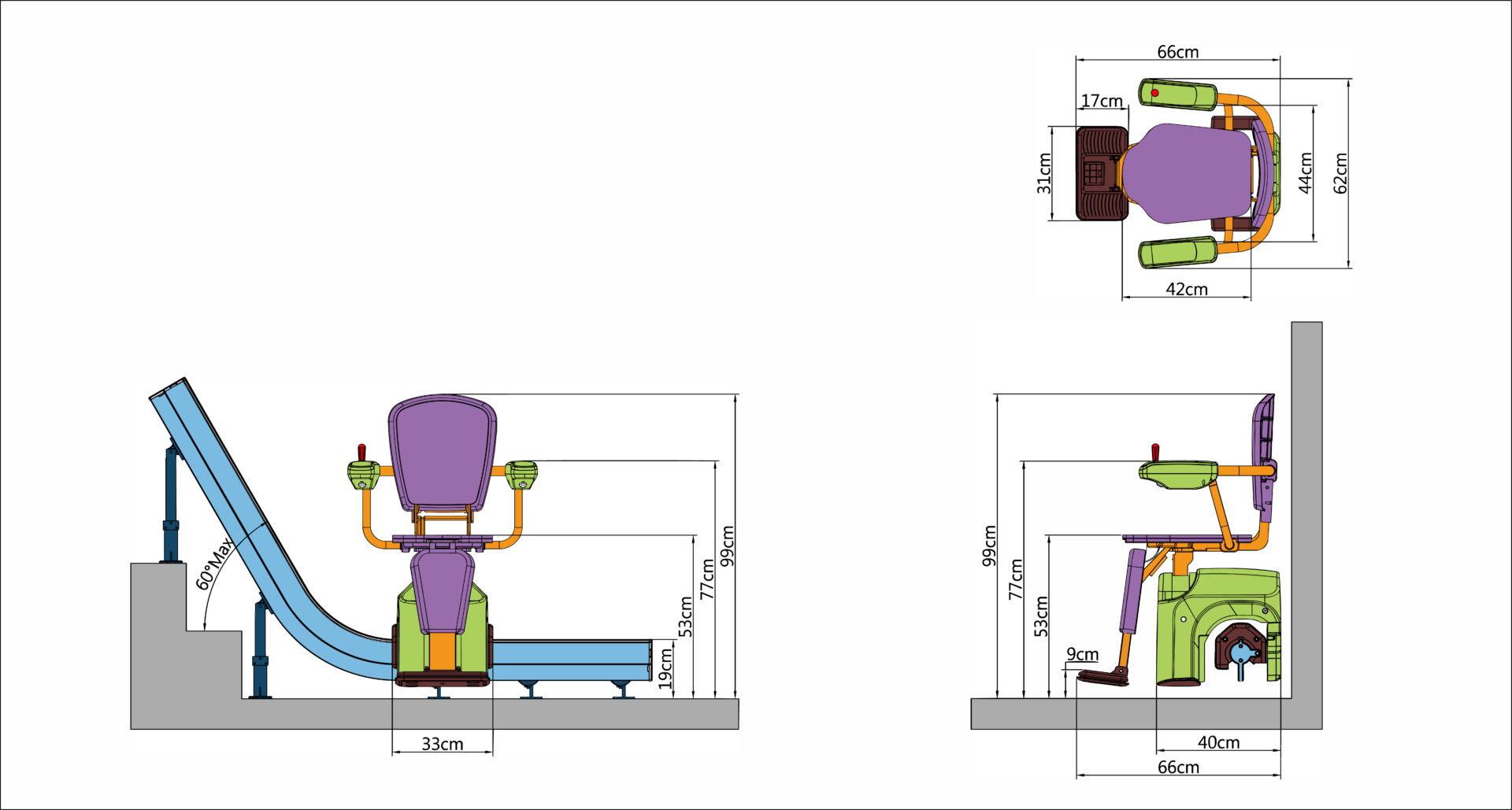

Specifications & Dimensions
Specification Sheet
| Item | Specification |
|---|---|
| Operating Voltage | DC 24 V Battery with Automatic Charging |
| Maximum Load Capacity | 115 kg Max. |
| Maximum Incline Angle | Maximum 60° |
| Drive System | Dual Variable-Speed Brushless DC Motors |
| Maximum Travel Speed | Straight: 5–9 m/min (Adjustable) |
| Curve: 2–3 m/min (Adjustable) | |
| Control Interface |
Easy-to-Use Joystick (Left- or Right-Hand Configuration Available) |
|
One-Touch Call Remote with Display (Item Transport Available) | |
| Caregiver Remote Control | |
| Floor-to-Floor Remote Control | |
| Seat Rotation | Manual (Optional) |
| Rail Lighting | White LED Light Strip (Optional) |
| Rail Material | 6063-T5 Aluminum Alloy |
| Safety Protection Features |
Rail Anti-Pinch Detection Footrest Anti-Collision Detection Drive Unit Anti-Collision Detection Electromagnetic Safety Brake Emergency Call Button Auto-Locking Seatbelt |
| Seat Dimensions | Unfolded: 61 cm W × 66 cm D × 98 cm H |
| Folded: 61 cm W × 43 cm D × 113 cm H | |
| Minimum Required Stairway Width | 65 cm Minimum |
